With A Frame Design Tunesheet

Spielwerke / movements

[1]	[33]
N° 1283	N° 2476
N° 3422	N° 7858
[Early 11000]	N° 11705
N° 12122	N° 12149
N° 13150	13386
N° 14043
N° 15327	N° 19260
N° 19373	N° 20130
N° 20572	N° 20930
N° 23445	N° 24479
N° 24480
N° 24987	25075
N° 25486
N° 25752	N° 26477
26645	N° 26925
N° 29661	N° 27351
	N° 32507
N° 33769	N° 34859
N° 36495	N° 38769
N° 40028	N° 41376
N° 41947	N° 42554
	N° 42763
N° 42882	N° 45631
N° 45916

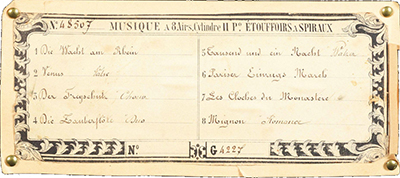

N° 48507	N° 48729
N° 48737	N° 50307

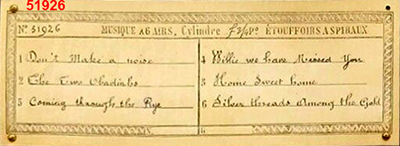

N° 51926	N° 54667
N° 53221	N° 54667

[1],
[2] (clockbase, attrib. to L'Épée),
33, 1216, 2476, 3422, 4321, 7858, 12122, 12149, 13386, 14043, 6th: Valse Belle Gabrielle, 17570, 18929, 19260, 19373, 20130, 20572, 20930, 23445, 24479, benachbarte Seriennnummer: 24480, 25486, 3rd: Martha, 4th: Le Travatore, 25617, 25752, 26477, 26645, 26925, 29661, 32507, 1st: Faust, 33769, 3rd: Home Sweet, 36495, 38769

40028, 41947, 42554, 3rd: My Old day, 6th: Only, 42763, 42882, 45631, 48507, 48737, 50292, 53221, 54667

release F

Typical L'Épée features

[1] no serial

Ebay 2022 Jan 10

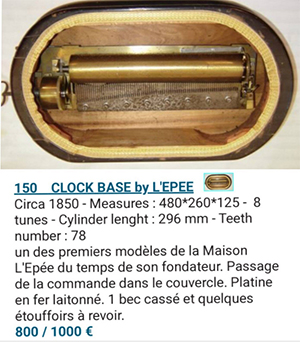

[2] no serial, attributed to L'Épée, in a clock base

Ebay 2023 Feb 18

N° 33

N° 1216

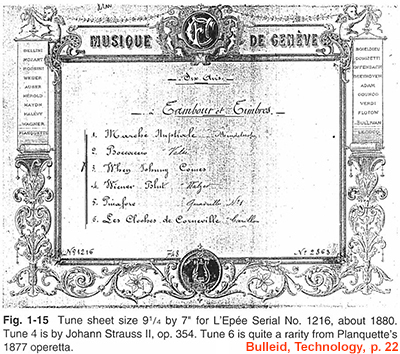

„I feel sure the wedding march is the Mendelssohn item most seen on tune sheets; it goes very well with drum and bells, as noted in fig. 1-15 for L´Epée Serial No. 1216. Suppé´s Boccaccio of 1879 is the latest tune of the six and its amusing that only the composers of the last two get their names on the tune sheet scrolls! The others are famous in different ways including T.B. Bishop of Maine, U.S.A., who wrote the words and the music for When Johnny Comes Marching Home Again. He had previously written, in 1859, first the chorus and later the verses of John Brown´s Body Lies A-mouldering … The strange thing about this tune sheet, which I am sure is the original for this musical box, is the FC monogram at top center, because it is always associated with F. Conchon. He was fully established by 1879 an no link is known between him and L´Epée. Nor can I explain the No. 2863 on the tune sheet, as 748 is probably the Gamme number. The printing is in black and gold by J. Pattegay, Mulhouse, France, quite near Sainte Suzanne and it is titled MUSIQUE DE GENEVE, common on L´Epée tune sheets but not on conchon. L´Epée Serial No. 4321 has the same tune sheet.“ (Bulleid, Technology, p. 22-23)

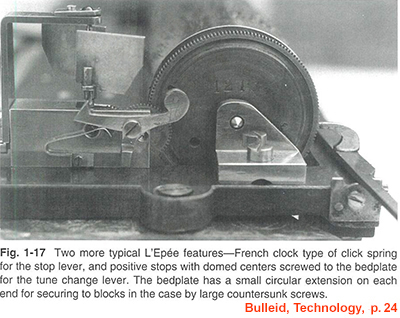

The mechanism of Serial No. 1216 has all the L´Epée characteristics except for a conventional brass Bremond-style winding lever. Some are shown in figs. 1-16 and 1-17. Several main components are marked 1216 or 16 and many common details such as bearing brackets are stamped 40. The cylinder setting dots are on tune 4, between track lines, typical of L´Epée.
The six bells and nine drum teeth are in the central 15-tooth comb so the main comb of 96 teeth is in two halves. The total of 111 teeth at L´Epée 0.018“ (0.46 mm) track width cover 12.1“ (31 cm) of pinning on the 12.8“ (33 cm) cylinder, leaving about ¼“ at bass end and ½“ at treble end unpinned, rather unusual and probably considered utterly deplorable by many Swiss makers. The 96 music teeth permit good decoration in all the melodies, quite cleverly kept clear of bell and drum noise.
Twisted tensioning wires criss-cross the drum, with screwed adjustable tightened hooks; all purely decorative as the metal face, back, and body of the drum are all soldered together. To prevent harshness the drum strikers are fitted with leather pads.
(Bulleid: Cylinder Musical Box Technology, 1994, p. 23-24)

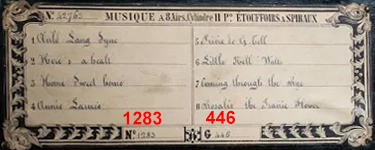

N° 1283

Private ownershop

N° 2476

Made by L'Epee of St. Suzanne, France, numbered 25752 and with serial number 2476

Approximately 22" (56 cm) wide x 8" (20 cm) deep x 5¾"(14.6 cm) high

Antiques Atlas No. as1159a014 / 3414

N° 3422

N° 4321

has the same tune sheet design as N° 1216

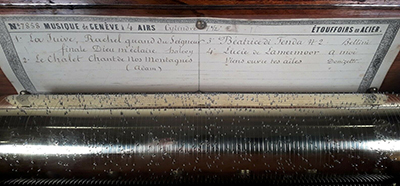

N° 7858

N° Early 11000

N° 11705

N° 12122

©Ebay 2022 Aug 30

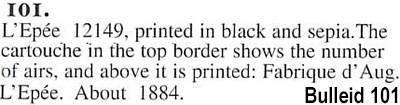

N° 12149

N° 13150

Ebay 2023 Apr 24

N° 13386

N° 14043, 6th: Valse Belle Gabrielle, 6 airs

French 8-day time and strike movement with 2 auxiliary movements striking at the the hour and half-hour, pull rod music box with three tunes, unsigned 40 x 34 x 7 inches

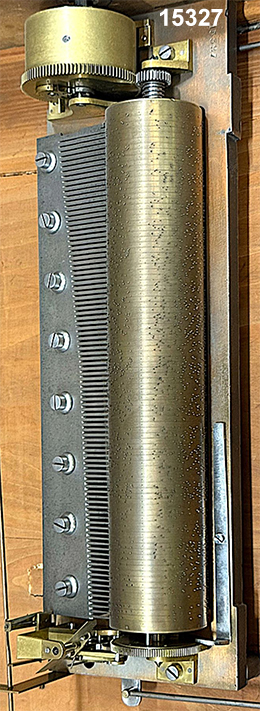

N° 15327

La Cracovienne“, „Chant Bohémien“, „Valse les Souvenirs d’Allemagne“, „Das Alpenhorn“, „The London Galop“,Hoffnungs Walzer“ von Beethoven,

Französische Bilderuhr mit Musikspielwerk, unten rechts signiert „A. B. Desfontaines / fils“,
74 x 90 cm (HxB), Rahmenbreite 10,5 cm

N° 17570

N° 18929

Thibouville-Lamy-Melodienblatt (Kopie)

Seltene Forte-Piano-Walzenspieldose von L'Epée, um 1860Nr. 18929, 8 Melodien, mit zwei Stahlkämmen (beide komplett), 64 Töne (Forte) und 44 Töne (Piano) (in Chevron-Formation, die Baßzähne jeweils links und rechts, glatte Grundplatte, Aufzugshebel mit Holzgriff, Metall-Steuerplatte, Thuya-furniertes Gehäuse, spiegelsymmetrisch furnierte Front, gewölbter Deckel mit gravierter Messingeinlage, Gehäusebreite 63 cm, Walzenbreite 41,5 cm

Auction Team Breker 2023 Mar 25

N° 19260

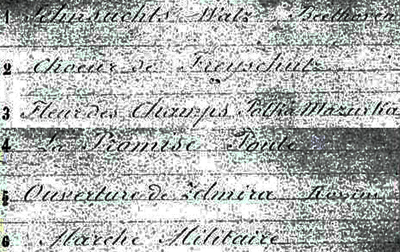

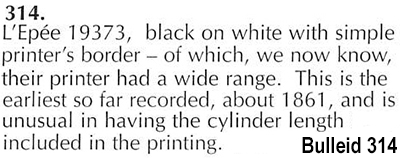

N° 19373

N° 20130

N° 20572

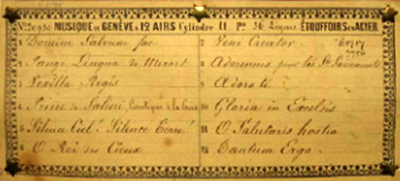

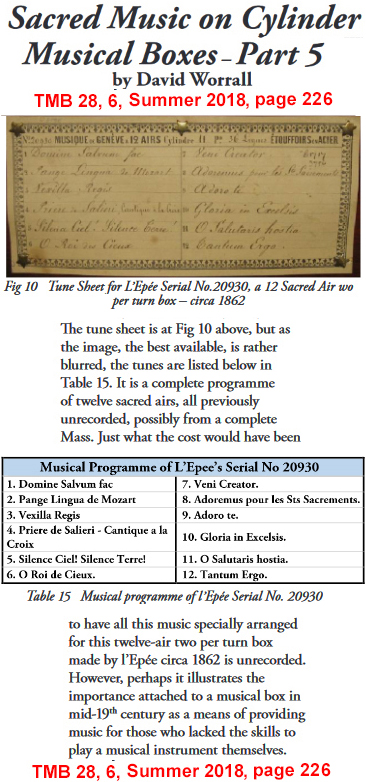

N° 20930

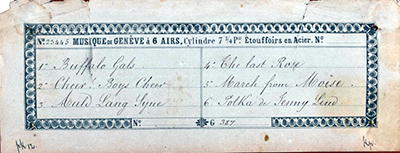

N° 23445

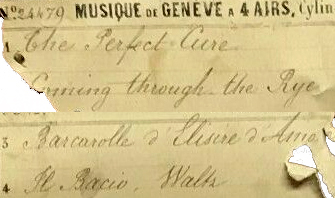

N° 24479

Private ownership

N° 24480

Ebay 2022 Dec 16

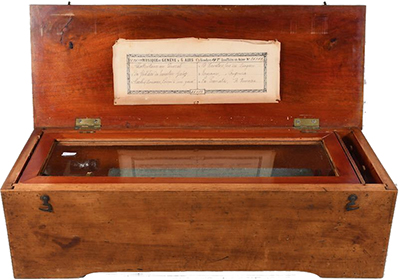

N° 25486, 3rd: Martha, 4th: Le Travatore

bedplate top left

14 x 47 x 18

N° 25752

Serial

Gamme

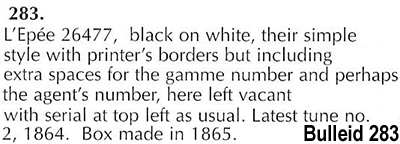

N° 26477

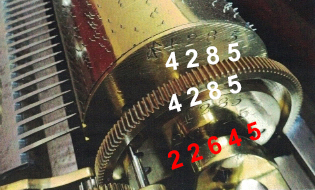

N° 26645

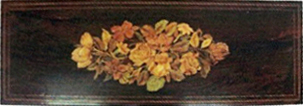

MMW-31-2022-p7-fig8

SW agents-stamp

N° 26925

N° 29661

No. 29251, playing six airs including Champagne Charlie and Dixie's Land, with reverse-lever wind, silvered bedplate, Metzler & Co. retailer's label, tune sheet and grained case, the rosewood lid with brass stringing and central inlay of brass and coloured enamel - 16in. (41cm.) wide, the cylinder 8½in. (21cm.)

Metzler & Co, London

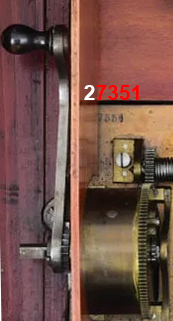

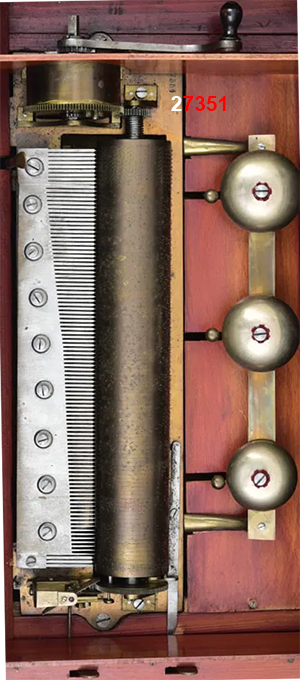

N° 27351, 1st: L´Etoile du Nord

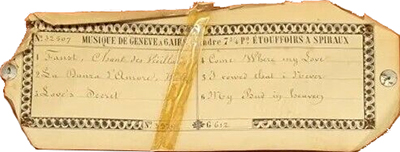

N° 32507, 1st: Faust

N° 33769, 3rd: Home Sweet

bedplate top left ad woog

Ebay 2023 Okt 2

N° 34859

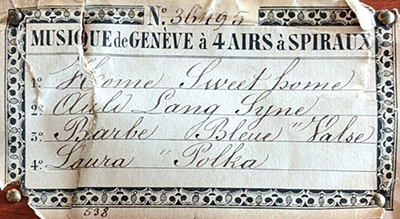

N° 36495

Ebay 2023 Mar 7

N° 38769

AW = Adolphe Woog

For an extensive documentation
(PICT and all pieces of music!) of
please click here and then on THE COLLECTION and then CARTELS and finally on the following button

N° 40028

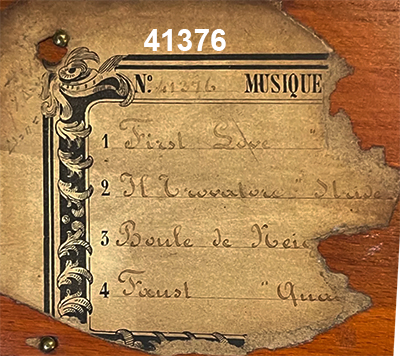

N° 41376

1st: First Love, 2nd: Trovatore,
3rd: Boule de Neige (Offenbach UA 1871), 4th: Faust (Quadrille)

z Bedplate top left corner

Ebay 2024 Aug 26

N° 41947

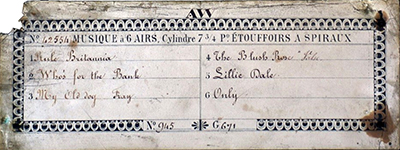

N° 42554, 3rd: My Old day, 6th: Only

N° 42763

52 cm (Breite) x 19,5 cm (Tiefe) x 14 cm (Höhe)
Privatbesitz

N° 42882

A musical box playing six airs, by L’Epée, Serial N° 42882, Gamme N° 671 or N° 1020, circa 1876, extremely good quality reprinted tunesheet, single-spring motor and single-section comb, on maker’s polished steel bedplate, stained interior under dustlid, in stained case with well-figured rosewood veneered top, complex floral inlay to centre

Dimensions: case: 16 inches (42 cm) wide, cyl.: 8 1/4 inches (21 cm)
